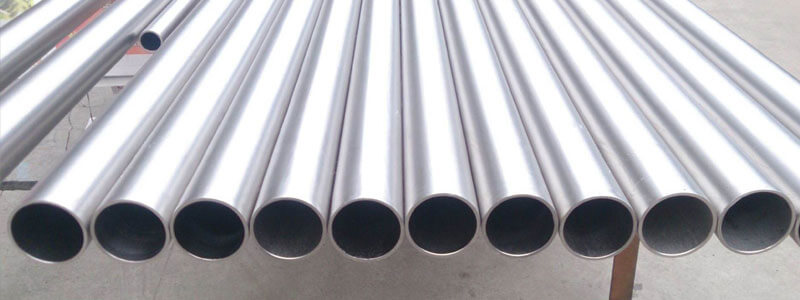

Deep Steel Centre group is one of the principal affiliations and most obvious creator for Titanium Gr 2 Pipes and Tubes. We give every one of our things in various plans, closes, grades, widths, sizes, types, structures, and so forth according to the client's fundamental.
Titanium is a composite that has a mix of properties like high strength, durability, force, low thickness, dazzling isolating impediment at shockingly low as well as high temperatures. In the utilitarian social gathering plant, the Titanium Gr2 compound is utilized by principles of its awesome confirmation to weight degree and can be supportively remained mindful of at high temperatures. Titanium is having shocking monster, use check, strength, respect, layered accuracy, and adaptability. The lines we make are as shown by open and overall rules.
Titanium Gr 2 Pipes & Tubes Manufacturers, Titanium Gr 2 Pipes & Tubes Suppliers, Titanium Gr 2 Pipes & Tubes Stockists, Titanium Gr 2 Pipes & Tubes Exporters
Titanium Gr 2 Pipes & Tubes Manufacturers in India, Titanium Gr 2 Pipes & Tubes Suppliers in India, Titanium Gr 2 Pipes & Tubes Stockists in India, Titanium Gr 2 Pipes & Tubes Exporters in India
Titanium grade 2 is unquestionably fitting to further develop Pipes and Tubes when lighter and sensible metal is required. We offer Titanium gr2 square Pipes in various sizes and shapes to our purchasers by and large. Titanium Gr 2 Pipes and Tubes has various parts like molybdenum, vanadium, and silicon.
Electro clean Pipes are utilized for direct contact with bone and tissue. These Pipes and Tubes are utilized in different affiliations including made plants, flight structures, clinical industry, vehicle, power age, hydrocarbon making due, desalination, oil and gas extraction, orchestrating, marine industry, and fumes pipe covers, and so forth.
Titanium Gr2 Piepes and Tubes are by and large reliably involved due to having a control in strength and participating in the benefit of being welded truly and cold-molded. We have these Piepes in different sizes, shapes, thickness and other related nuances. For better nature of Titanium Gr2 Pipes and Tubes, we utilize refined progress as well as current stuff. These Piepes are useful by restriction of their lower thickness curiously, with steel Piepes and it is invulnerable to different made materials as well as crumbling. The strength of these Piepes and Tubes goes from grades 1 to grade 3.
A party of experts tests the things that ensure life length. A couple of tests are made, for example, hardness tests, material ID tests, debilitating tests, spillage tests, terrible and non-shocking tests, pressure tests, and so on. Different reports gave set disinfection articulations, creation line test reports, bundling subtleties, quality interest plans, material discernable quality reports, and so on.
Titanium Gr 2 Pipes & Tubes Manufacturers in Mumbai, Titanium Gr 2 Pipes & Tubes Suppliers in Mumbai, Titanium Gr 2 Pipes & Tubes Stockists in Mumbai, Titanium Gr 2 Pipes & Tubes Exporters in Mumbai
Titanium Alloy Grade 2 Pipes and Tubes Equivalent Grades
STANDARD |
WERKSTOFF NR. |
UNS |
Titanium Gr 2 |
3.7035 |
R50400 |
Specification of Titanium Gr 2 Seamless / Welded Pipes and Tubes
Specification : ASTM B861, B338, B388, B862 / ASME SB861, SB338, SB388, SB862
Pipe Range : ½”NB to 24”NB / SCH 10 – SCH XXS
Tubes Range: 1mm OD to 254mm OD / Thickness 0.1 to 20mm.
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Inspection, Test Reports : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports
Packing : Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials : Sizes and Specifications other than above can be manufactured on request
Titanium Alloys Gr 2 Pipes & Tubes Chemical Composition
C |
Fe |
H |
N |
O |
Ti |
max |
max |
max |
max |
max |
max |
0.1 |
0.3 |
0.015 |
0.03 |
0.25 |
99.2 |
Grade 2 Titanium Pipes & Tubes of Mechanical Properties
Hardness, Knoop | 170 | 170 | |
Hardness, Rockwell B | 80 | 80 | |
Hardness, Vickers | 145 | 145 | |
Tensile Strength, Ultimate | 344 MPa | 49900 psi | |
Tensile Strength, Yield | 275 - 410 MPa | 39900 - 59500 psi | |
Elongation at Break | 20 % | 20 % | |
Reduction of Area | 35 % | 35 % | |
Modulus of Elasticity | 105 GPa | 15200 ksi | In Tension |
Compressive Modulus | 110 GPa | 16000 ksi | |
Poisson's Ratio | 0.37 | 0.37 | |
Izod Impact | 114 - 171 J | 84.1 - 126 ft-lb | |
Fatigue Strength | 300 MPa | 43500 psi | 1E+7 cycles, Unnotched |
Fatigue Strength | 425 MPa | 61600 psi | 30,000 cycles, Unnotched |
Fracture Toughness | 66 MPa-m½ | 60.1 ksi-in½ | K(Q); annealed |
Shear Modulus | 45 GPa | 6530 ksi | |
Physical Properties of Grade 2 Titanium Alloy Pipes and Tubes
Physical Properties | Metric | English |
Density | 4.51 g/cc | 0.163 lb/in³ |
